D500 FILLING MACHINE

Machine specifications:

• The machine is a volumetric filling machine operating with a pneumatic system.

• Weight adjustment is easily set and recorded using a handwheel and a counter.

• It draws the product to be filled directly from the production tank.

• High surface smoothness and argon welding technology prevent bacterial growth and contamination.

• Sealing elements are manufactured from Teflon, Viton, or Polyethylene materials, depending on the chemical properties and temperature of the material to be filled.

• Parts on the machine are connected to each other with tri-clamps.

• The nozzle, valve, and filling piston are designed for easy cleaning. They can be easily disassembled without using any tools.

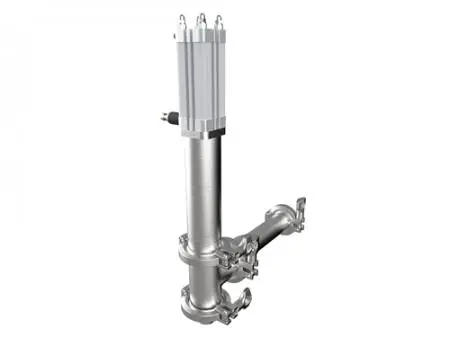

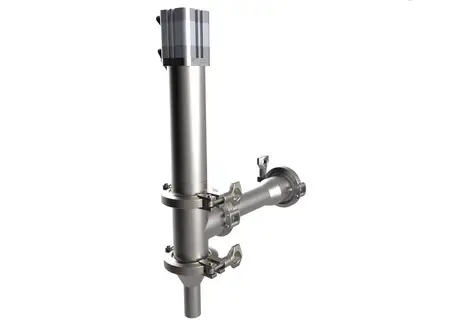

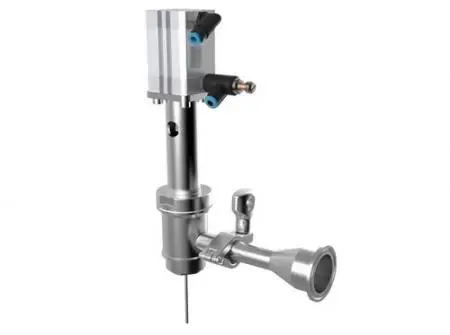

• Interchangeable filling nozzles are available for liquid, viscous, or granular products.

• There is a drawer-type platform to place packaging during the filling process; this platform can be easily adjusted up and down according to the height of the packaging.

• The machine stands on a stainless steel frame supported by 4 wheels. Thanks to its wheels, it can be quickly and easily prepared for filling at the desired location.

• Tabletop and wheeled models are available.

• The machine operates with 6 bar (ATÜ) compressed air; no electrical or electronic systems are used in the machine.

• Detailed user manuals are available for each model.

Materials used in the machine:

• All surfaces in contact with the product to be filled are made of 316 L quality stainless steel. Other external surfaces, protective sheets, and legs are made of 304 quality stainless steel and aluminum.

• FESTO brand pneumatic equipment (oil-free system).

Operating temperature:

Filling can be performed from 5 ºC to 85 ºC with standard sealing gaskets, and above 90 ºC with gaskets made of special materials.

Filling accuracy: ± 1%

Fillable products:

Honey, Tahini, Molasses, Liquid Sauces, Olive Oil, Pomegranate Sour, Vinegar, Turnip Juice, Milk, Ayran, Kefir, Boza, Fruit Juice, etc.
